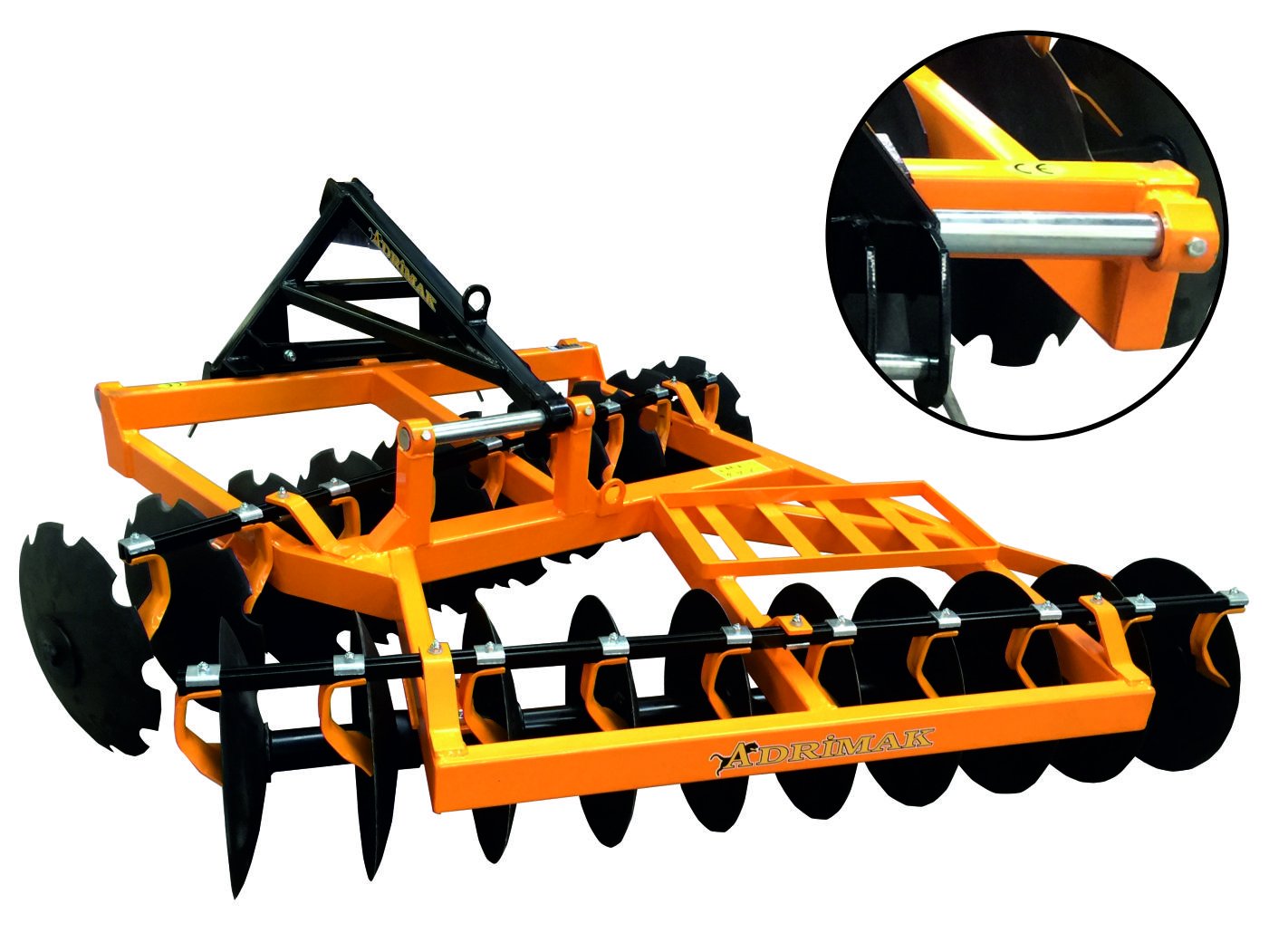

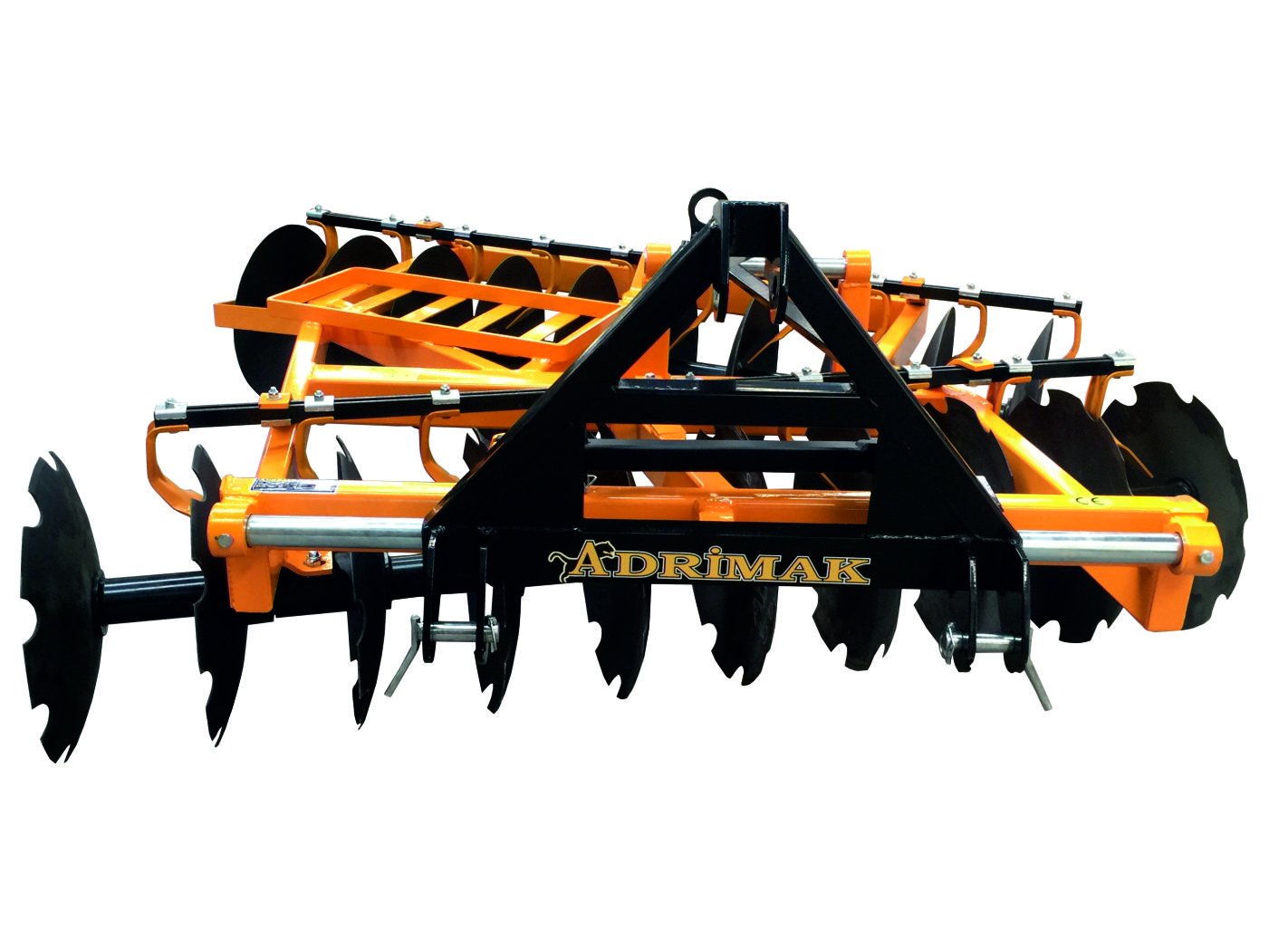

V Type Mobile Disc Harrow (AVG)
Loading Products...
Video
It is used to mix the fertilizer thrown into the garden or field.The working angle is fixed. Working depth can be increased by adding extra weight to the weight compartment on the chassis.
TECHNICAL SPECIFICATIONS
| Model | Disc Number | Disc Diameter (mm) | Disc Spacing (mm) | Working Width (mm) | Weight (kg) | Required Power (hp) |
| AVG 16 | 16 | 510 | 225 | 1730 | 433 | 40 |
| AVG 18 | 18 | 510 | 225 | 1980 | 450 | 50 |
| AVG 20 | 20 | 510 | 225 | 2200 | 503 | 55 |
