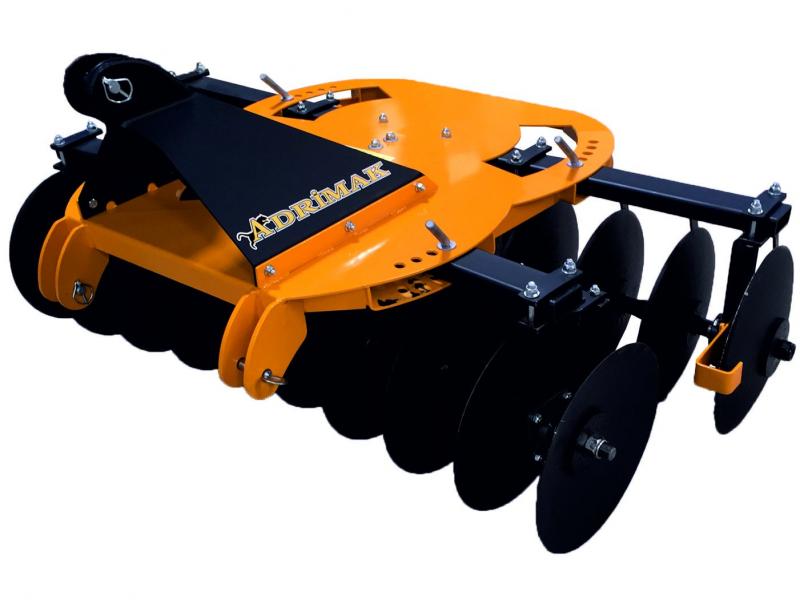

Mini X Type Disc Harrow (ATOM)


Loading Products...

It is a tillage equipment used in orchards and hobby gardens, designed for mini tractors, whose working angle can be changed manually.



TECHNICAL SPECIFICATIONS

 Model   Disc Number   Disc Diameter (mm)   Disc Spacing (mm)   Working Width (mm)   Weight (kg)   Required Power (hp)
 ATOM 16  16  400  160  1400  230  25 - 35
 ATOM 20   20  400  160  1720  260  30 - 40
 ATOM 24     24  400  160  2040  290  35 - 45
