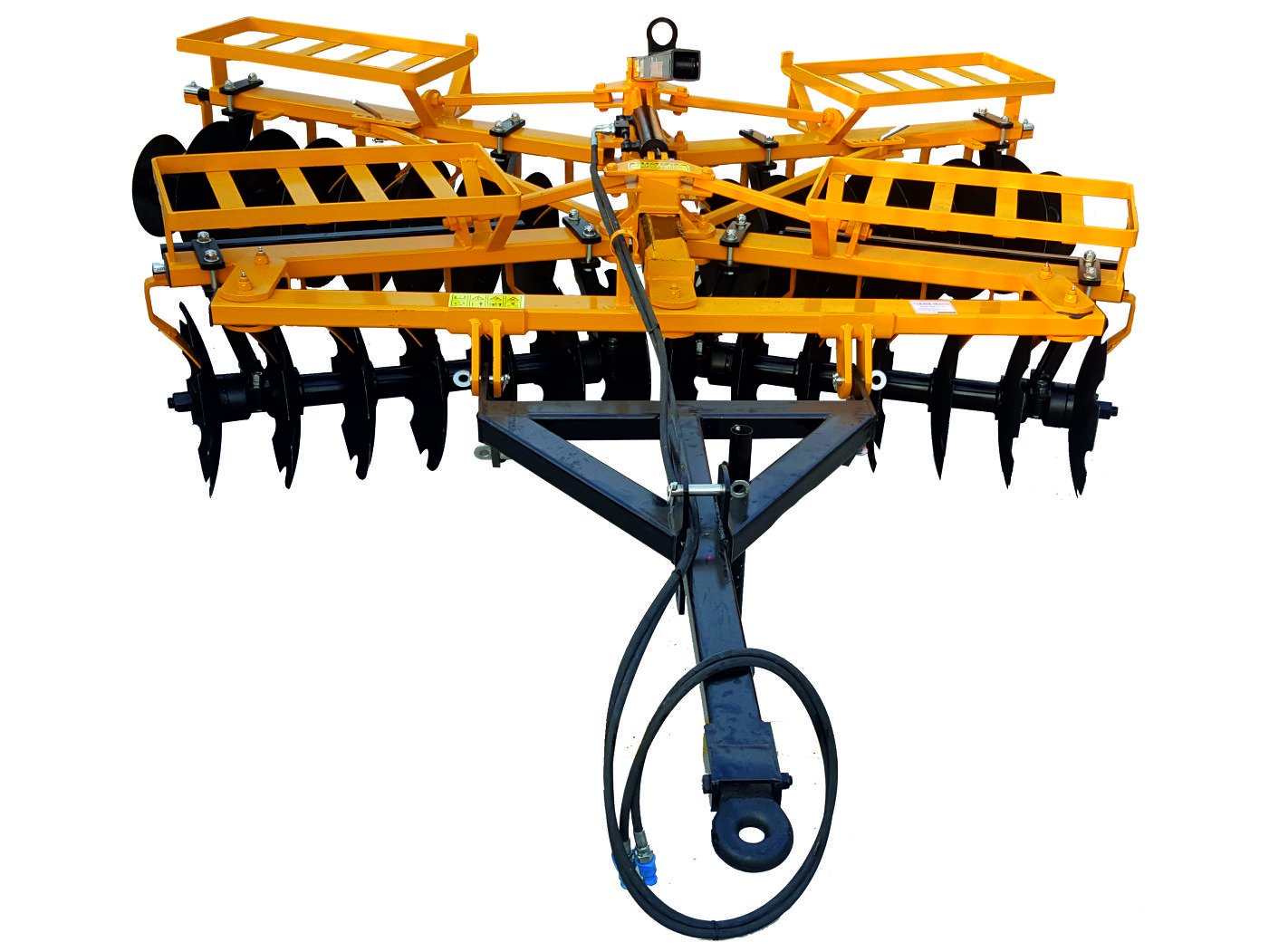

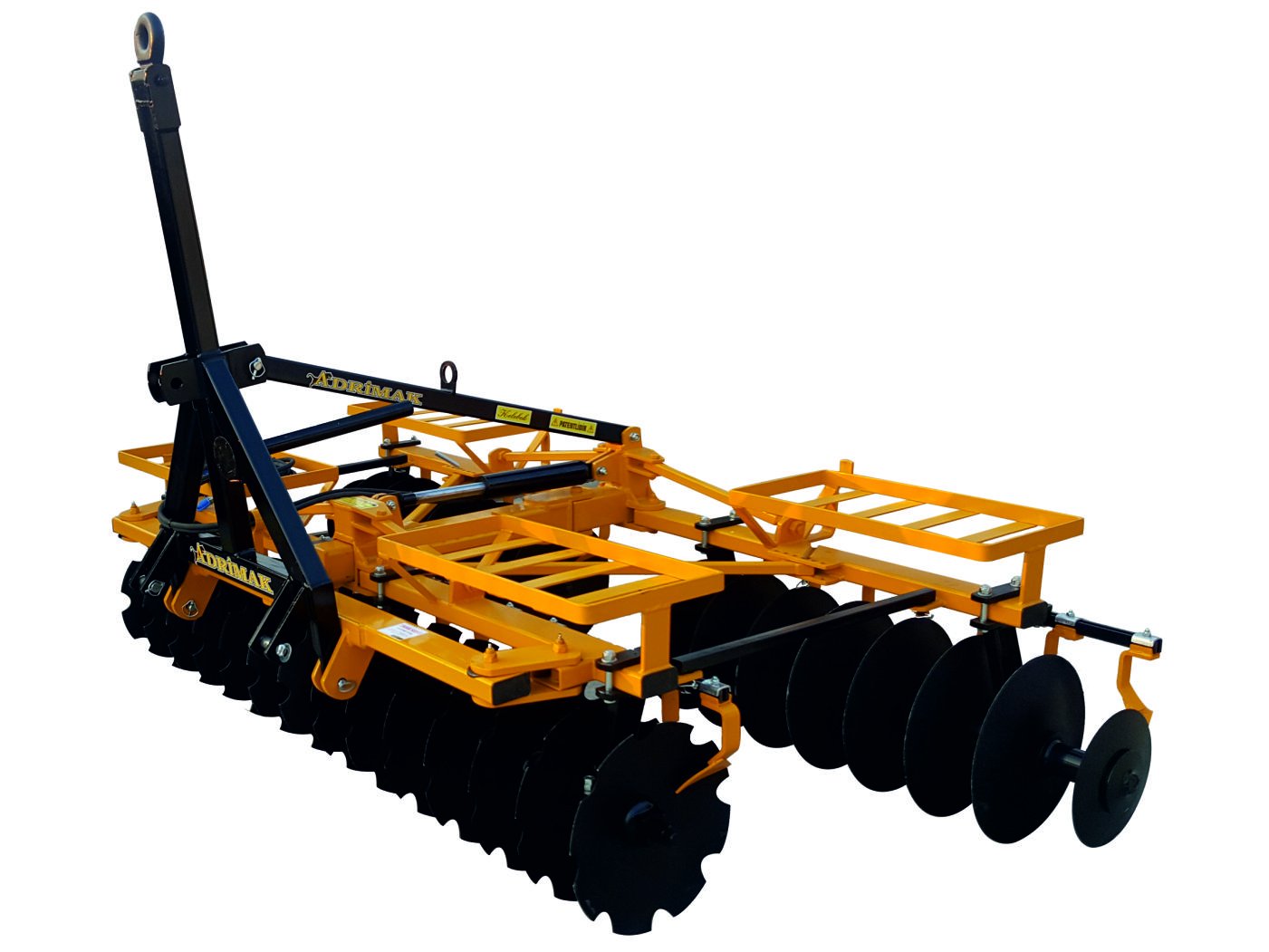

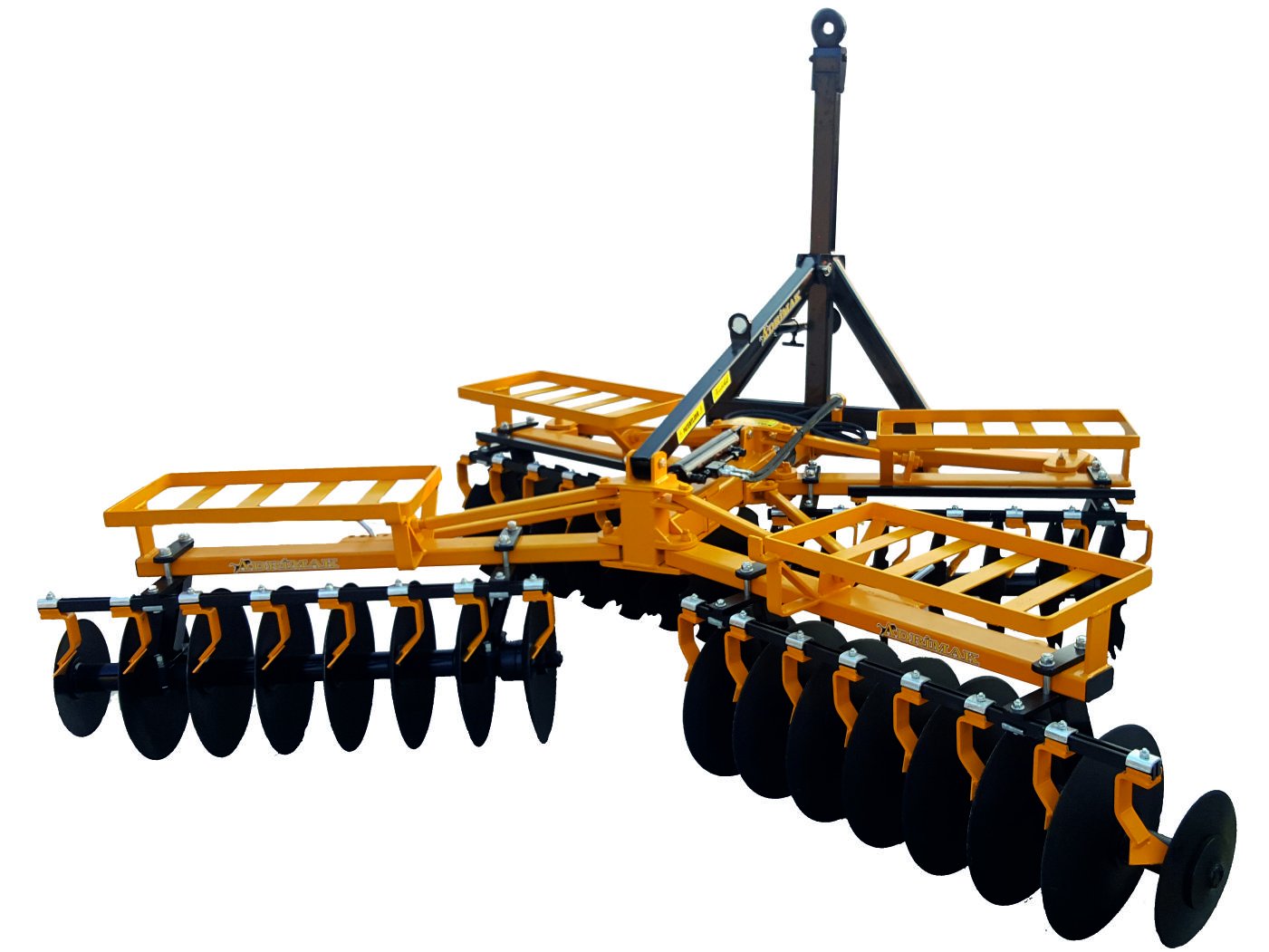

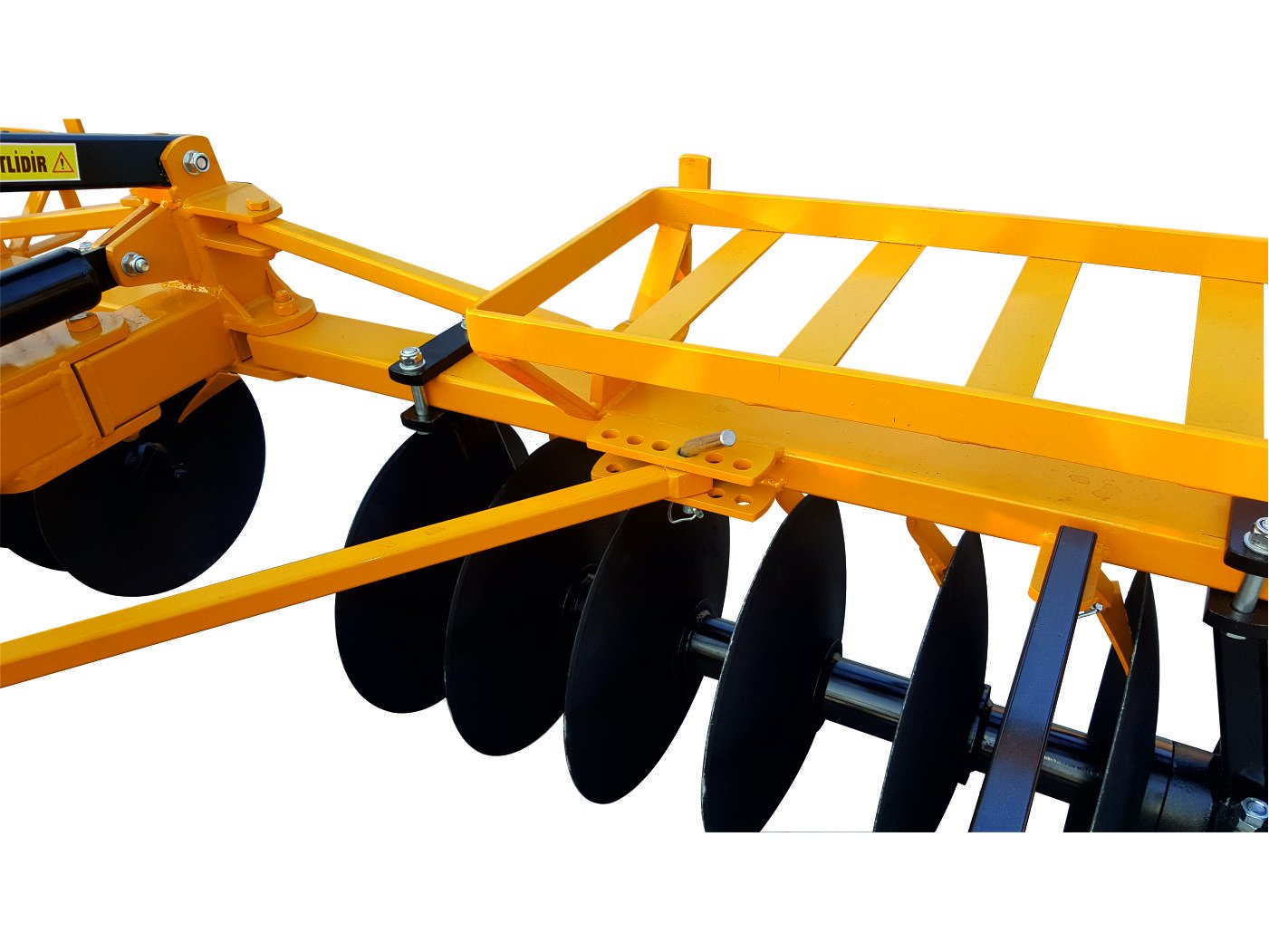

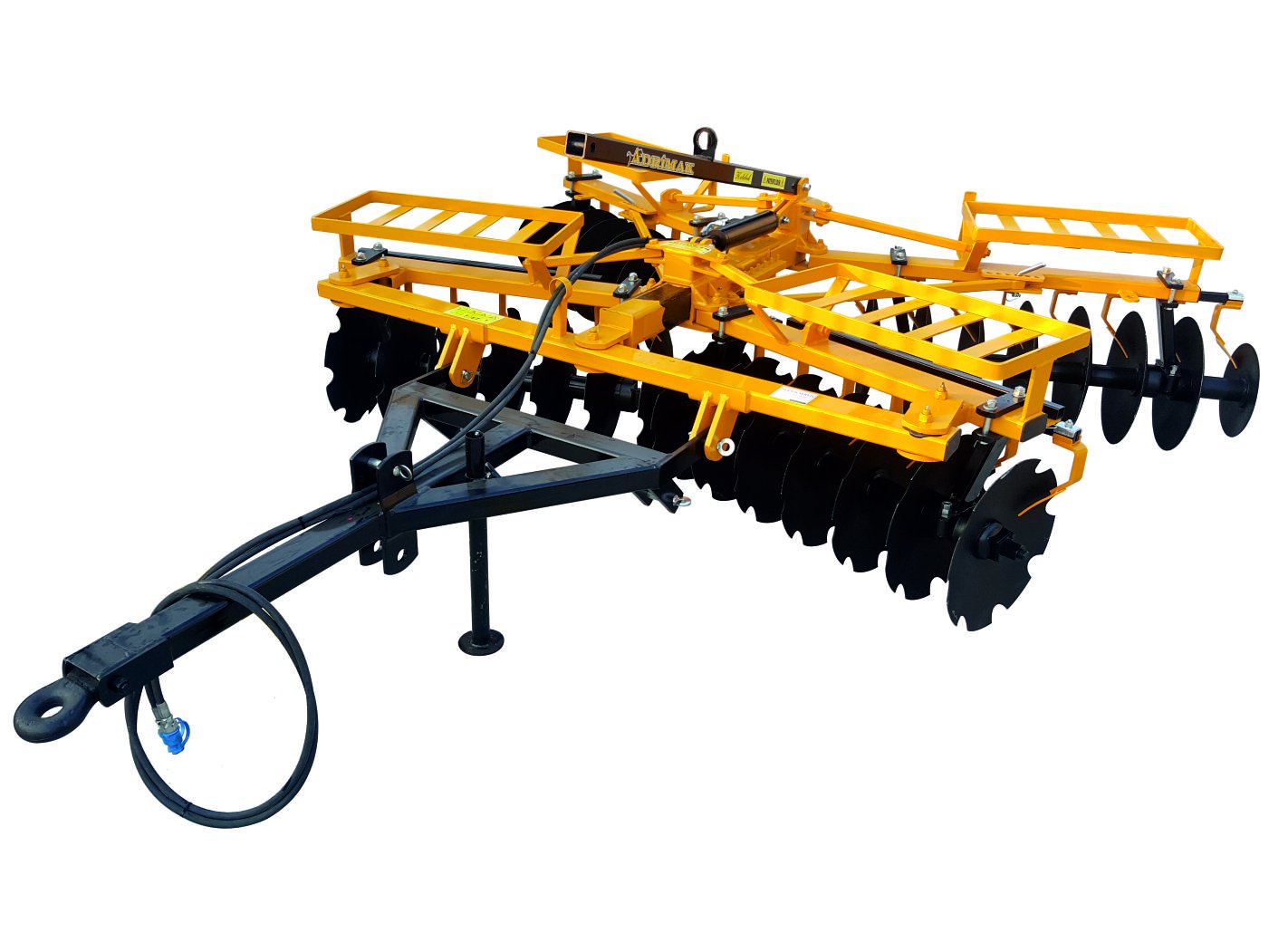

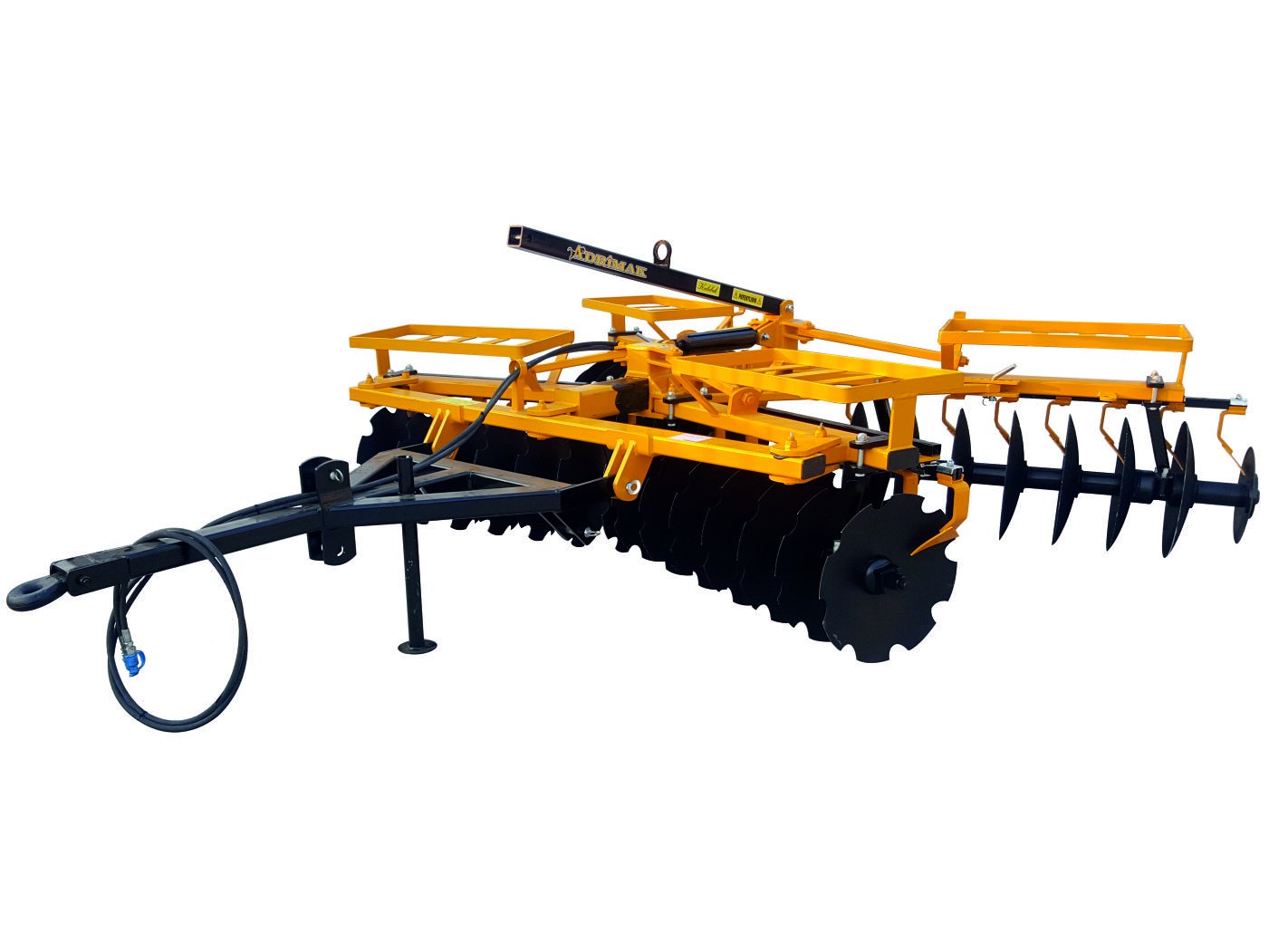

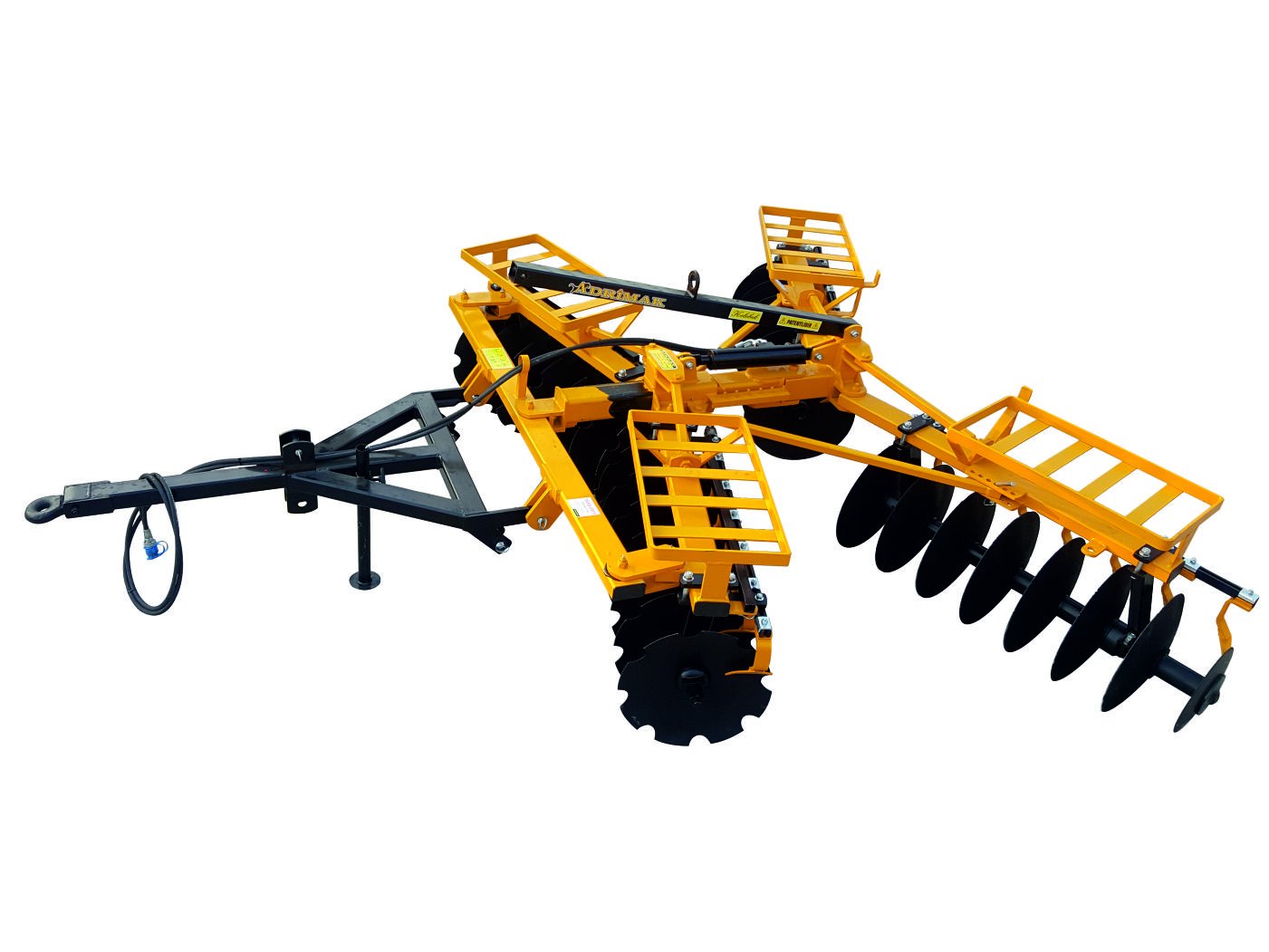

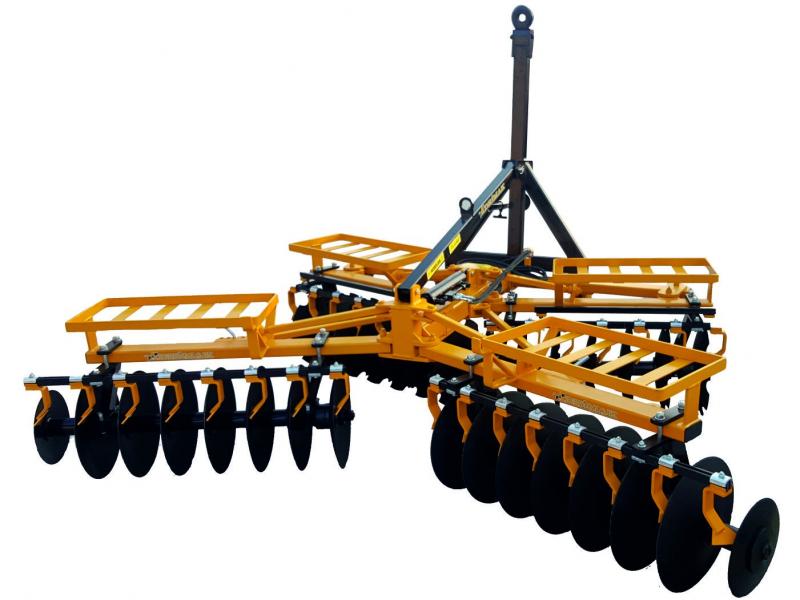

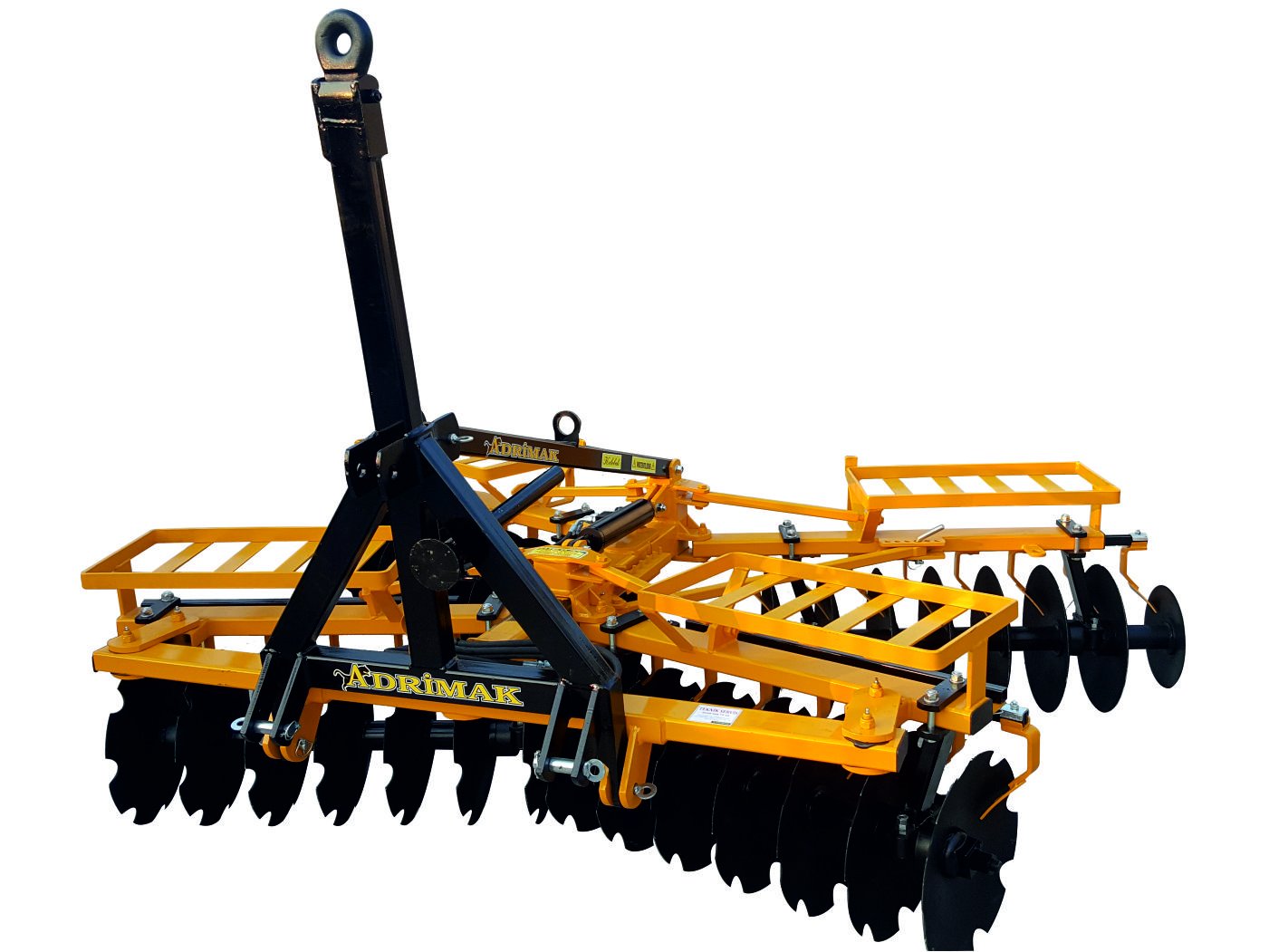

It is used for processes such as cutting the pests by completing the work of the plow, preparing the seed bed by mixing the soil, cutting the plant wastes and weeds in the field, mixing the fertilizer into the soil. Work angle is very advantageous compared to mechanically changed disc harrows. There are no restrictions on turns in the field, it can turn left or right. Thanks to its piston, which can change the work angle, it provides the opportunity to adjust the work angle according to the soil structure even while on the move. With its ability to do work caused by the patented heavy-duty butterfly harrow system, a 40% work advantage without saving the load on the tractor provides work and fuel savings, and the heavy-duty butterfly disc diameter is produced as 560 mm.
TECHNICAL SPECIFICATIONS
Model | Disc Number | Disc Diameter (mm) | Disc Spacing (mm) | Working Width (mm) | Weight (kg) | Required Power (hp) |
KTH 24 | 24 | 460 | 172 | 2260 | 640 | 50 - 60 |
KTH 28 | 28 | 460 | 172 | 2600 | 720 | 60 - 70 |
KTH 32 | 32 | 460 | 172 | 2940 | 760 | 70 - 80 |
KTH 36 | 36 | 460 | 172 | 3280 | 780 | 80 - 90 |
KTH 40 | 40 | 460 | 172 | 3620 | 915 | 85 - 105 |
