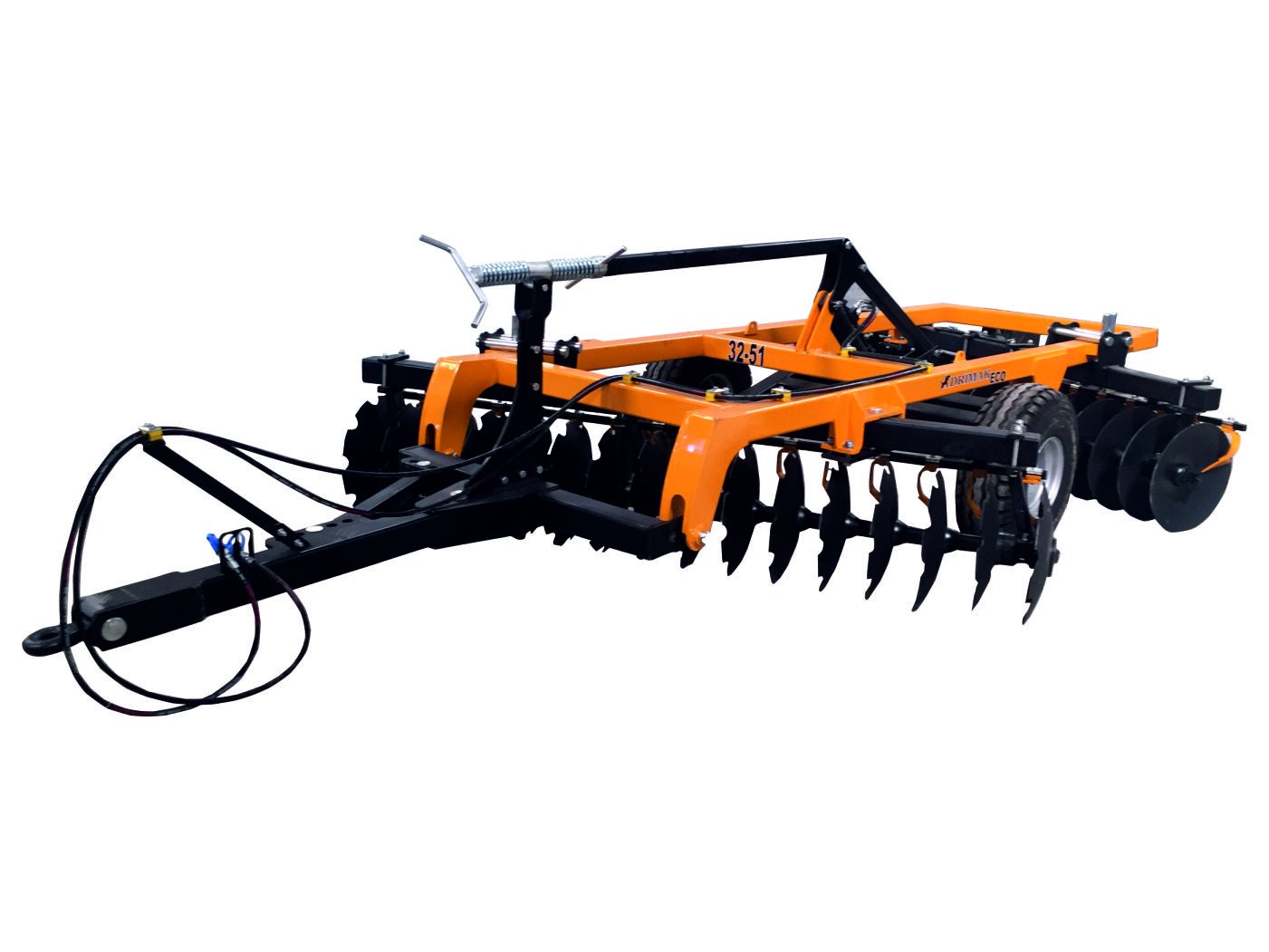

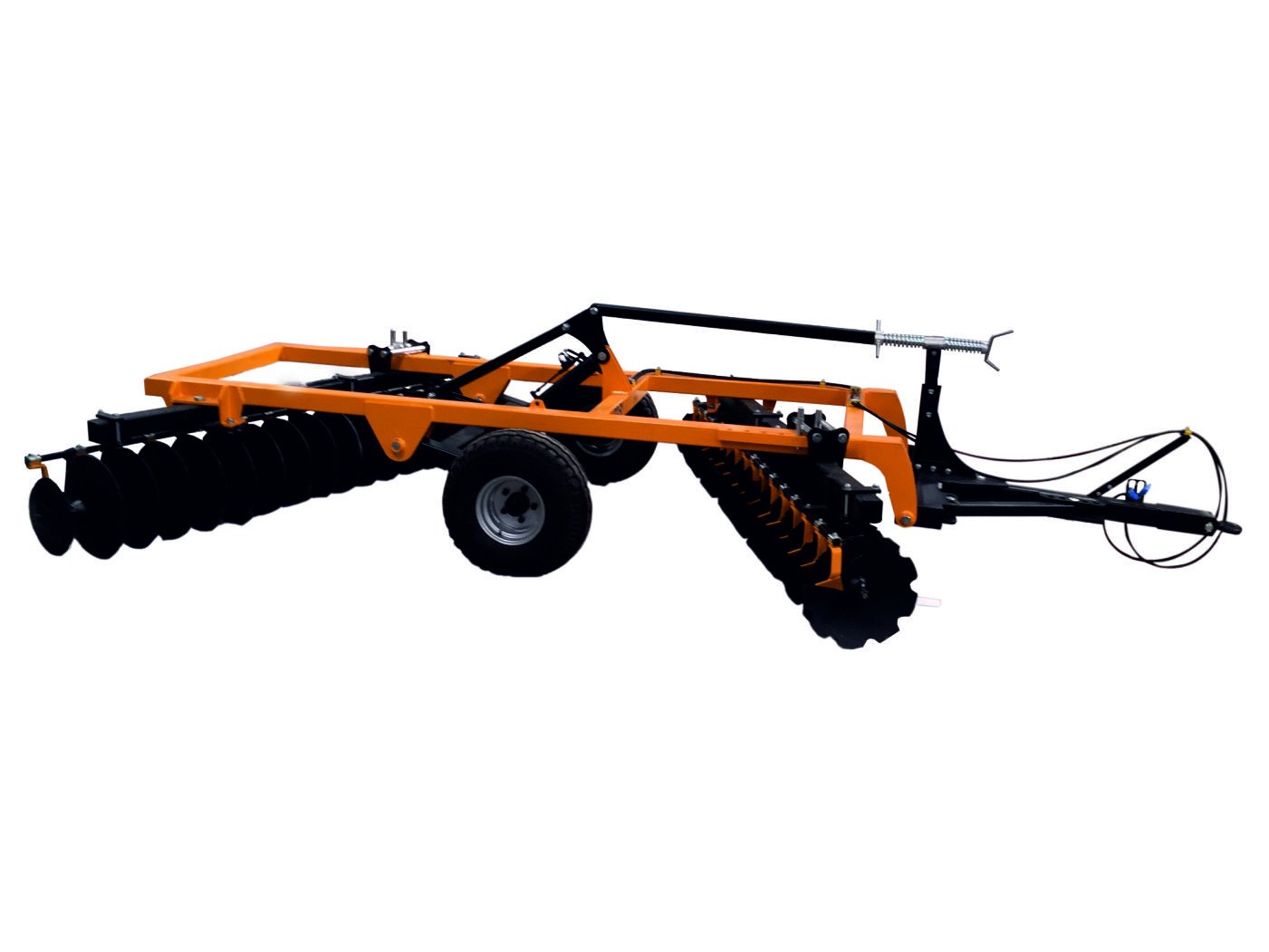

It is a light type disc harrow that can be used hydraulically. Thanks to its wheels, this machine is controlled by the hydraulic control from the tractor in the road position and the discs are lifted up. It can only make left turns at the end and start of the field.
TECHNICAL SPECIFICATIONS
Model | Disc Number | Disc Diameter (mm) | Disc Spacing (mm) | Working Width (mm) | Weight (kg) | Required Power (hp) |
LTG 28 | 28 | 460 | 172 | 2600 | 1630 | 70 - 90 |
LTG 32 | 32 | 460 | 172 | 2980 | 1730 | 80 - 100 |
LTG 36 | 36 | 460 | 172 | 3220 | 1860 | 90 - 110 |
LTG 40 | 40 | 460 | 172 | 3460 | 1960 | 100 - 120 |
